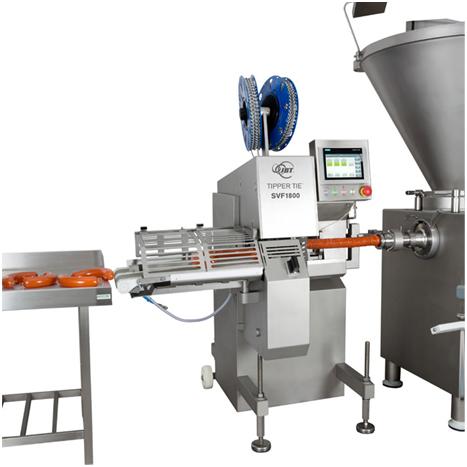

Automatic Double Clipper SVF1800
About the product
The SVF1800 is a TIPPER TIE automatic double clipper for producing large-caliber products in polymer, fiber, and collagen casings with calibers ranging from 35 to 140 mm. The machine delivers a throughput of up to 130 portions per minute, connects to standard packaging machines, and is suitable for individual loaves, chains, and ring-shaped products. Its robust stainless steel construction, touchscreen controls, and clip-closing force monitoring system ensure reliable operation and a long service life.
The SVF1800 is a TIPPER TIE automatic double clipper for producing large-caliber products in polymer, fiber, and collagen casings with calibers ranging from 35 to 140 mm. The machine delivers a throughput of up to 130 portions per minute, connects to standard packaging machines, and is suitable for individual loaves, chains, and ring-shaped products. Its robust stainless steel construction, touchscreen controls, and clip-closing force monitoring system ensure reliable operation and a long service life.
Performance and Application
The SVF1800 is designed as a cost-effective automatic double-clipper for large-caliber products. It handles polymer, fiber, and collagen casings with diameters of 35–140 mm and provides a throughput of up to 130 portions per minute.
The equipment can precisely clip individual loaves, portion chains, and ring-shaped products. Adjustable clip pitch between 15 and 18 mm allows the machine to be adapted to different calibers and production requirements.
The manufacturer's current product page additionally indicates the SVF1800 is suitable for minced meat and fish, surimi, vegetable products, cheese curds, soups, sauces, pet food, and other products that can be packaged in flexible casing.
Clipper and Displacement System
Clipper closure is achieved by a robust, fixed, cam-driven head. A displacer removes product from the clipping area, producing clean, meat-free ends.
An electronic safety system monitors the motor load during clip closure. If the force exceeds the set limit, the machine automatically stops, preventing damage to the mechanism. This function requires no external sensors or additional cables.
Design and Service Life
The SVF1800 and drive levers are made of wear-resistant stainless steel. The cam mechanism components are designed for long service life with minimal wear.
The design provides easy access to key components and lubrication points, simplifying equipment maintenance.
Touch Control
The machine is equipped with a maintenance-free servo drive, PLC, and touchscreen display. The operator has access to basic operating and maintenance functions via the control system.
The touchscreen allows you to:
- save recipes for different products;
- adjust the clipping cam;
- select parameters for replacing knives and tools;
- set the machine position for cleaning;
- operate the mechanism in service mode.
The interface uses graphic elements and text prompts in several languages.
Hygienic design
Smooth stainless steel surfaces are designed without protruding screw heads and grooves where dirt can accumulate. Horizontal surfaces have a slope of about 3°; For free water drainage.
The machine components comply with the IP65 protection class, and sealed enclosures protect the valves, drive, and control system during sanitization.
Noise level stated according to EN ISO 11204.
BSZ 105-2 Loop Feeder
Designed for automatic loop feeding during production.
Single Clipping Mode
Allows the machine to be used in operations that require a single clip instead of the standard double closure.
Thread Dispenser
Used in the production of ring-shaped products.
Longitudinal Portioning
Mechanical and optical length control options are available.
Two Product Dispensing Options
Allow the finished product discharge method to be adapted to the production line organization.
Clip Coding
Used to apply identification information directly to the clip.
Pneumatic Brake Casing
Designed for more delicate work with casings sensitive to mechanical damage.
Casing End Detection
Allows you to monitor the presence of a casing and promptly respond to its end.
Wheel Set
An optional mobile base facilitates the movement and positioning of equipment within the production area.
